Description

Etched Glass MPN-1 Reticle

Low Light Weight Design

1/10 MIL Low Profile Resettable Zero Turrets

Fully Muti Coated Reaches 85-87% Light Transmission

Offered in Second & First Focal Plane

Free Lens Cover, Honeycomb Sunshade & 30mm Scope Rings

Relations



Feature

· Fully Multi Coated Reaches 85% Light Transmission Sharp Clear Image

· 4 inch Long Eye Relief With Wide Field of View & Edge-to-Edge Image

· Etched Glass MPN-1 MIL Reticle, Side Focus Minimal from 10 Yards

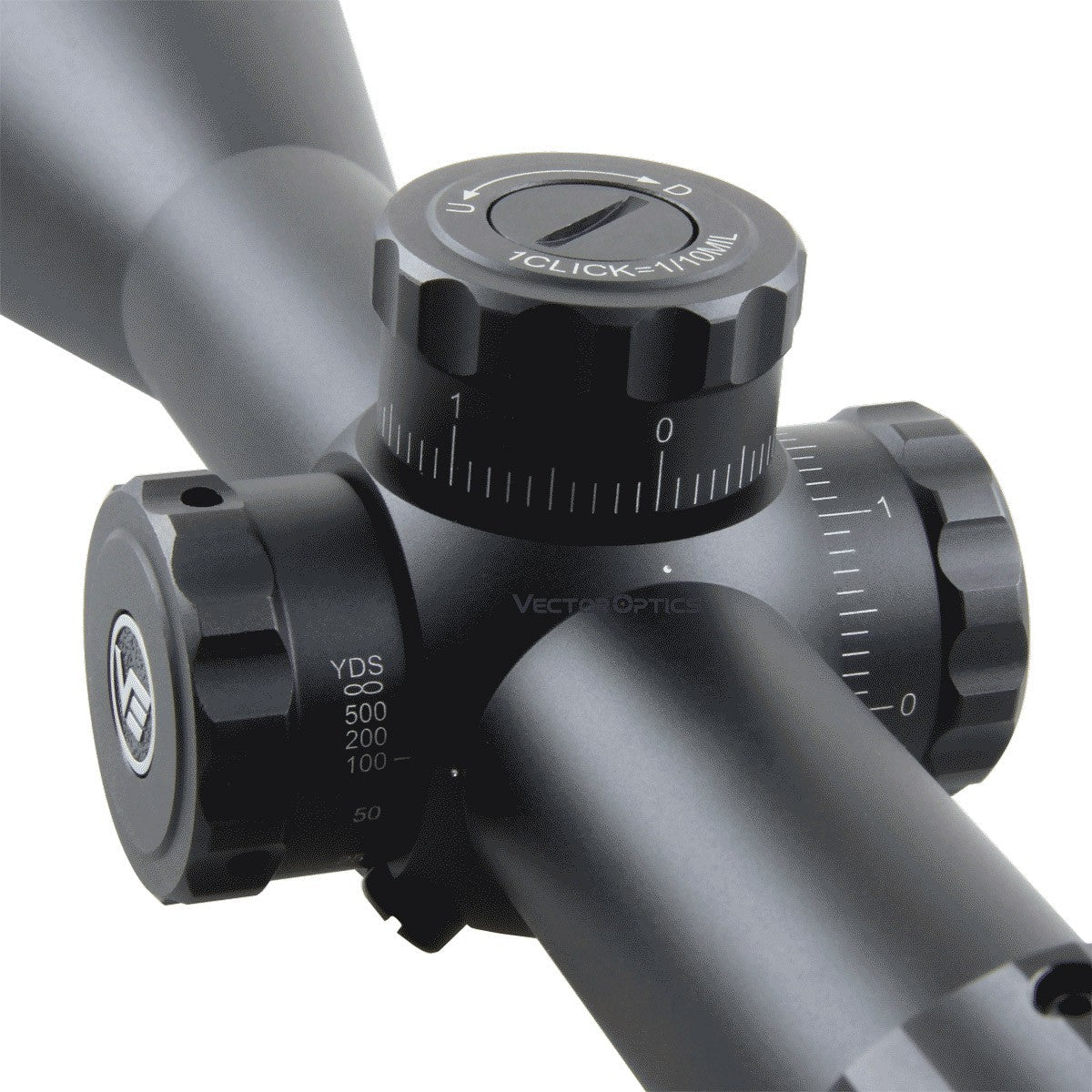

· 1/10 MIL Low Profile Adjustment w/ Turret Lock & Re-Zero Feature Total 15MIL Adjustment Range

· w/ Power Ring Lever Mount, 1cm & 0.1 MRAD Spare Turrets, Scope Rings, Honeycomb Sunshade

Reticle



Specification

· Magnification: 4.5-18x

· Objective Lens Dia.: 50mm

· Ocular Lens Dia.: 35mm

· Tube Dia.: 30mm

· Exit Pupil: 11-2.74mm

· Field of View: 4.4°-1.1°

· Eye Relief: 105-100mm / 4.13-3.93 inch

· Optics Coating: Fully-multi coated

· Reticle: Etched Glass MPN-1 Reticle

· Weight: 700g / 24.7oz

· Length: 350mm / 13.8 inch

· Click Value: 1/10 MIL

· Adjustment Range: 15 MIL

· Side Focus: 10 yards to infinite

· Finish: Black matte

· Illumination: N/A

· Distance between objective lens part and middle turret: 56mm (2.2 inch)

· Length of middle turret part: 39mm (1.5 inch)

· Distance between middle turret part to power ring: 57mm (2.2 inch)

· Side focus: marked 10, 15, 25, 50, 100, 200, 500 yards to unlimited

· Shock proof (1000g), water proof and fog proof (nitrogen purged)

· Direct finger windage and elevation adjustments with turret lock feature

· Diopter adjustment at ocular lens (diopter compensation +2 to -2)

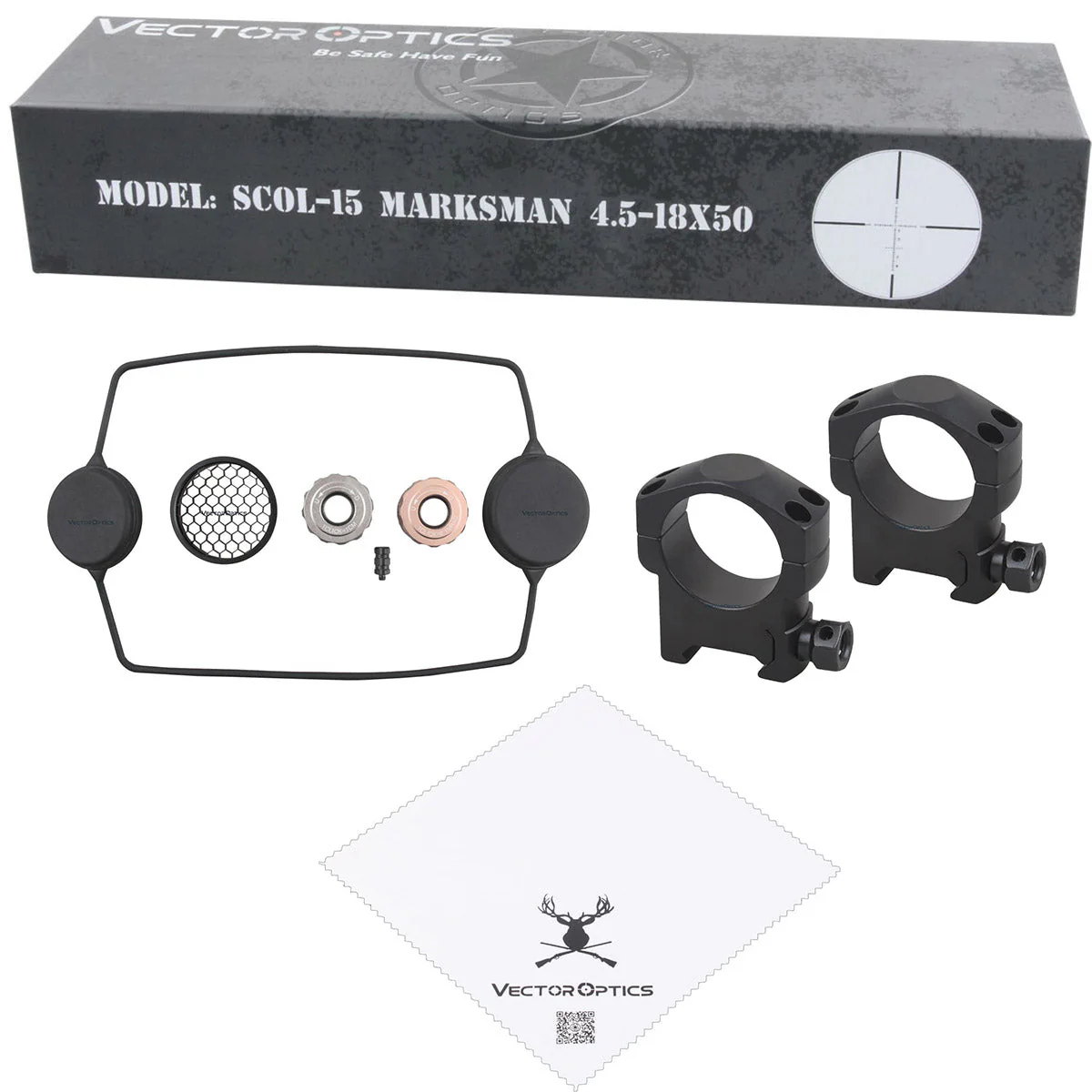

· Free fitting involved: power ring lever mount, 30mm mark weaver ring (default) , dark silver color 1cm spare turret, golden 0.1 MRAD spare turret, cleaning cloth and honeycomb sunshade etc
